Intermatic

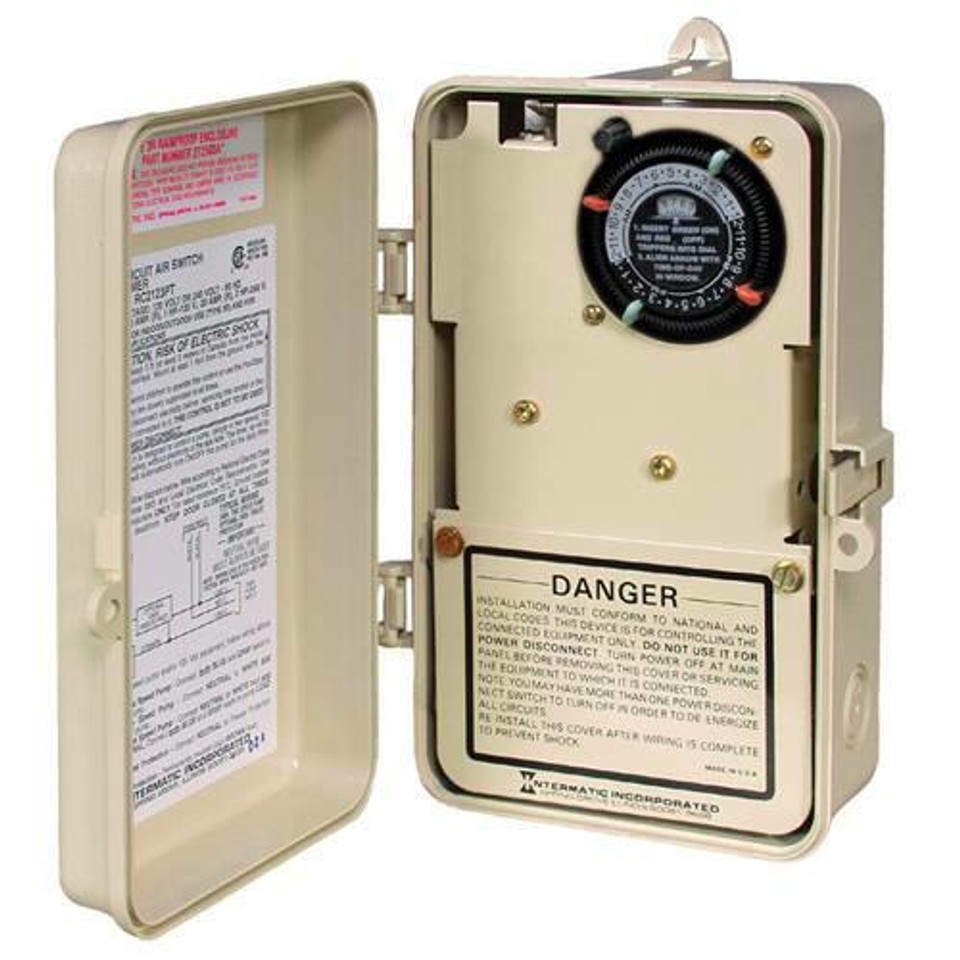

Intermatic RC2343PT MULTIFUNCTION AIR SWITCH WITH 24-HOUR TIMER
- SKU:
- I9621
- UPC:
- 078275048546
- MPN:
- RC2343PT
- Weight:
- 10.00 LBS
- Shipping:
- FREE GROUND SHIPPING. Expedited Shipping Calculated at Checkout
Description
Features & Applications
Features
- Remote control for one or two separate loads
- Multiple ON/OFF settings per day
- Flexible air hose (RC117 sold separately) enables operation up to 100 feet
- Type 3R plastic indoor/outdoor enclosure
- Requires a neutral
Applications
- Pool and Spa Pumps
Specifications
Switch Type
4-Function
Maximum Receiver Count
0
Number of Radio Channels
0
Reception Range (ft)
0
Reception Range (m)
0
Resistive
20 A, 120/240 VAC, 60 Hz
Motor
1 HP, 120 VAC, 60 Hz
2 HP, 240 VAC, 60 Hz
Wire Lead Length (mm)
0
Air Tube Max Length (ft)
75
Air Tube Max Length (m)
22.86
Enclosure Type
Indoor/Outdoor Type 3R Plastic
Warranty
1-Year
Related Products

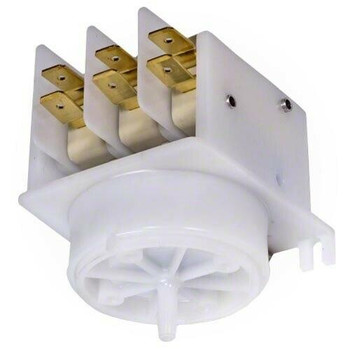

Four Function Air Switch Model MCB311A
$45.00
Magictrol Air Switch
Air Spout: Center Spout
Action: 4 Function, Sequential
Switch Circuit: 3PDT
UL Rating: 21 Amp, 1 hp @ 125VAC
MCB311A Magictrol Air Switch. Four function...

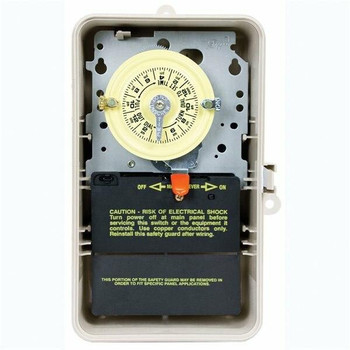

Intermatic Indoor/Outdoor 220v Timer with Plastic Enclosure
