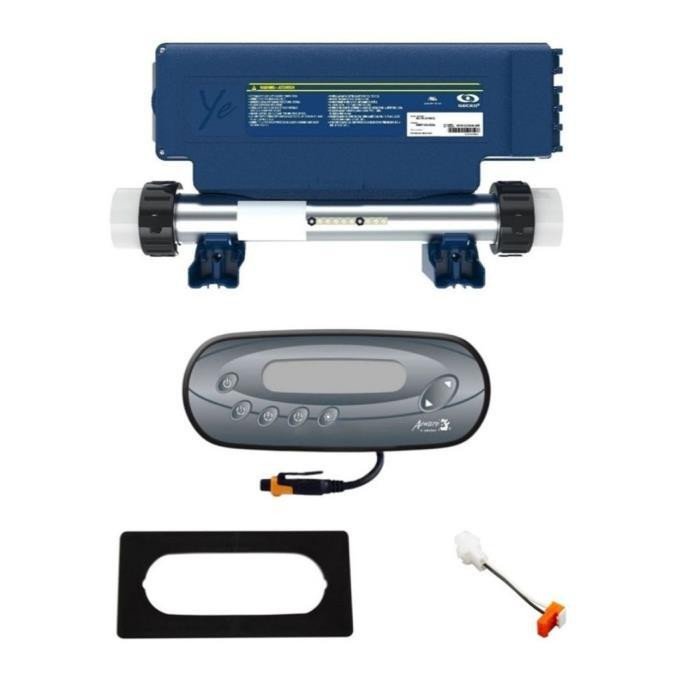

Control System Bundle Gecko In.Ye-5 4.0kw/ in.K450 Topside, with light cord, and adapter plate

Gecko IN.YE-5 Version 3 Essential Bundle Spa Control System with IN.K450 Topside 4.0 kW

Check lower level programming before purchasing- See Install Guide above

The Gecko IN.YE-5 V3 Bundle (ASP-INYE5K450-2P-728), is a comprehensive, ready-to-install control system for entry-level to mid-range residential spas.

This kit pairs the latest IN.YE-5 V3 control box with a 4.0 kW fixed flow-through heater, the popular IN.K300 multi-function topside keypad

It is a high-performance alternative to Gecko S-Class and SSPA systems, offering simplified installation, advanced solid-state technology, and full 5-output configurability. The V3 board brings a boosted CPU, external memory, higher-capacity relays, and integrated in.mix 300 color LED support compared to the previous generation.

Bundle Contents

• 0610-221126-728 — IN.YE-5-V3 Control System with 4.0 kW Heater (core unit)
• BDLK4503OP — IN.K450 Topside Keypad with Overlay
• 9917-102123 — Adapter Plate for IN.K450
• 9920-401507 — Cable Light Harness Adapter, 3-Pin to 2-Pin

Key Features

• 5 Configurable High-Voltage Outputs — supports Pump 1 (1 or 2 speed), Pump 2 (1 or 2 speed), Blower, Circ Pump, and Ozonator in flexible combinations
• 4.0 kW Fixed Flow-Through Heater — stainless steel construction with dry-fire protection (in.flo technology); standard 2" x 15" heater
• IN.K450 Topside Keypad Included — advanced 2-pump multi-function keypad; 7.25" x 3", 10 ft cord; access to filtration scheduling, built-in clock, and time-of-day filtering controls
• 120V / 240V Convertible — each of the 5 outputs is individually configurable; neutral wire required for 115V operation
• Solid-State Water Flow Detection — no pressure switch to adjust; self-regulating and maintenance-free
• IPX5 Waterproof Enclosure — in.seal protection on all connectors and the power box
• Replaces Gecko S-Class and SSPA Systems — simplified installation with preloaded configuration
• Swim Spa Compatible — supports extended output configurations

Technical Specifications

Compatible Keypad Options

• IN.K200 — entry-level 2-pump keypad BDLK2002OP
• IN.K300 — standard 4-button dual-pump keypad BDLK3002OP
• IN.K450 — included; mid-range 3-pump multi-function keypad BDLK4503OP
• IN.K600 — static display advanced keypad BDLK6005OP
• IN.K8 — compact 8-button keypad BDLK83OP
• IN.K120 — auxiliary/secondary keypad 0607-005019
• IN.K800 — premium large-display keypad (sold separately) 0607-008030
• IN.K1000 — premium touchscreen keypad (sold separately) 0607-005042
• IN.K1001 — premium touchscreen keypad, alternate model (sold separately) 0607-008152

Lights for IN.YE - 12 Volt DC Light Only - Use the Following Options

• 246aa0064 — White 12VDC LED Bulb Gecko YJ Light Bulb use with 9920-400489 Light Harness246aa0064
• 0699-500020 — Color Light Assy, Gecko 9 LED Cluster IN.LU.ME-CLUS-9 V2 Use with 0699-500022 0699-500020
• 0699-500022 — Light Cable, 8ft 1 connector use with 0699-500020 0699-500022
• 0699-500021 —Light Cable, 5ft Extension only from loop to cluster cord 0699-500021

Replaces / Supersedes

• 0610-300003 / BDLYE5K450 (prior IN.YE-5 + K450 bundle without IN.TOUCH 3)
• Gecko S-Class and SSPA control systems (high-performance alternative)
• 0610-221046-355 (discontinued V2 IN.YE-5 control box)
