Regal Beloit

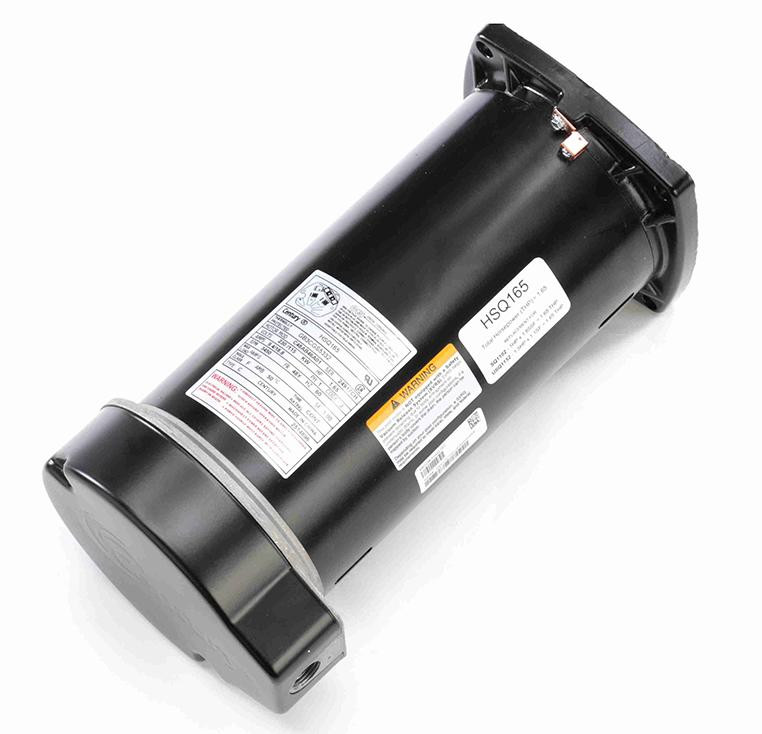

Century HSQ165 Motor 1.65 HP 115/230v
- SKU:
- U9658
- UPC:
- 786674069764
- MPN:
- HSQ165
- Weight:
- 20.00 LBS
- Shipping:
- Free Gound Shipping - Expedited Shipping available at Checkout
Description
Century(R) Centurion(R) Pro HSQ165 Square Flange Pool and Spa Pump Motor; 1.65 THP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft
KEY FEATURES
- Premium Sealed 203 Bearings Both Ends
- Open & Accessible Terminal Board & Wiring Compartment For Easy Installation
- New Triple Seal Protection on Pump-End Bearing
- Voltage Change Device
- Definitive Shaft Access (7/16" Wrench)
- UL 1081 Design
- 50°C Ambient
- 303 Stainless Steel Shaft
- Centurion PRO
Nameplate Specifications
| Output HP: | 1.65 Hp | Output KW: | 1.2 kW |
| Frequency: | 60 Hz | Voltage: | 230/115 V |
| Current: | 9.4/18.8 A | Speed: | 3450 rpm |
| Service Factor: | 1 | Phase: | 1 |
| Duty: | Continuous | Insulation Class: | F |
| Frame: | 48Y | Enclosure: | Open Drip Proof |
| Thermal Protection: | Automatic | Ambient Temperature: | 50 °C |
| UL: | Recognized | CSA: | Y |
| Number of Speeds: | 1 |
Technical Specifications
| Electrical Type: | Capacitor Start Induction Run | Starting Method: | Across The Line |
| Poles: | 2 | Rotation: | Counterclockwise Pump End |
| Mounting: | Round | Motor Orientation: | Horizontal |
| Drive End Bearing: | Ball | Opp Drive End Bearing: | Ball |
| Frame Material: | Rolled Steel | Shaft Type: | 1/2 Thread |
| Overall Length: | 14.12 in | Frame Length: | 10.13 in |
| Shaft Diameter: | 0.625 in | Shaft Extension: | 0.906 in |
