Description

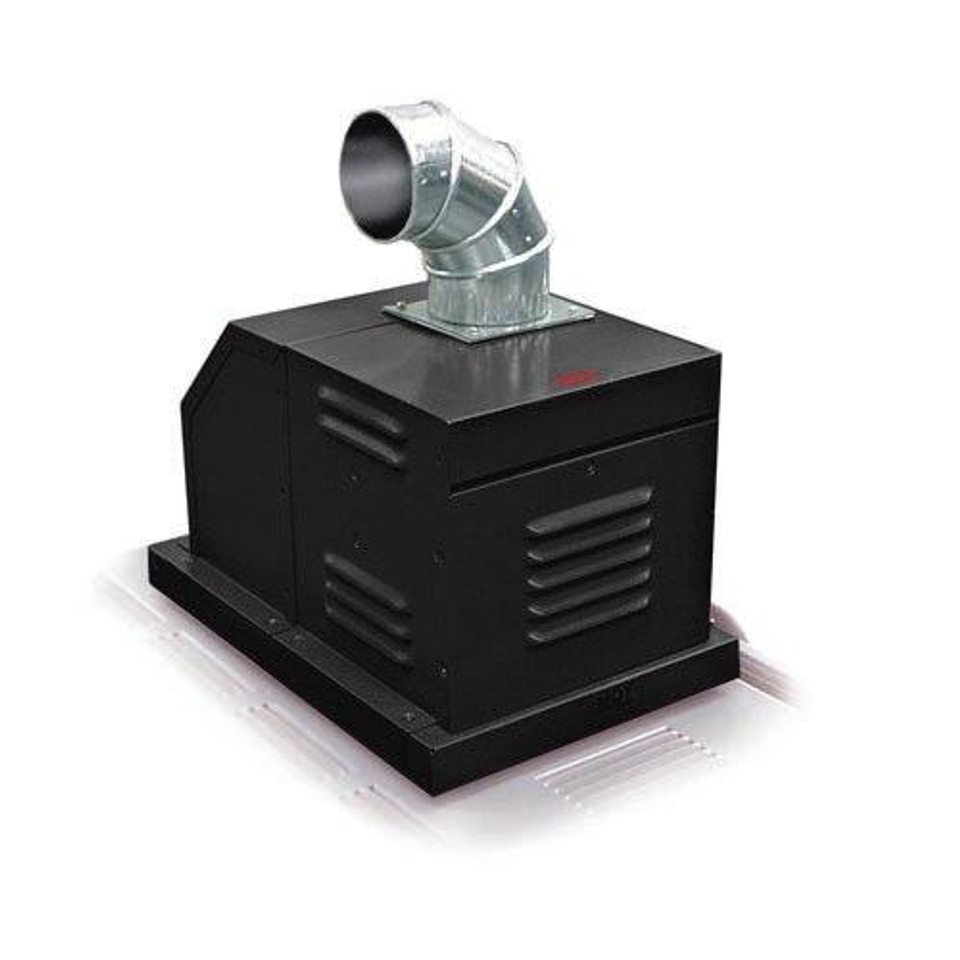

The Raypak Ruud D-2 Power Vent is an advanced solution designed for efficient and reliable venting of 206-266k BTU heaters. Ideal for both indoor and outdoor installation, it seamlessly integrates with all Raypak Digital models ranging from sizes 206A to 408, effectively replacing the standard draft hood to enhance performance.
Certified to the latest American National Standard ANSI Z21.56 for pool heaters, the D-2 Power Vent assembly exemplifies quality and safety. As a Category III mechanical draft venting system, it delivers positive vent static pressure while maintaining vent gas temperatures that minimize condensate production. This robust design allows for the efficient evacuation of flue gases up to 100 equivalent feet of vent length, with a standard 4” diameter exhaust connection suitable for sidewall termination.
Flexibility is a hallmark of the D-2, which accommodates various venting configurations. By incorporating a field-supplied adjustable 90° elbow, the flue gases can be discharged in any direction, allowing for straightforward adaptability. Alternatively, removing the elbow enables vertical venting options, ensuring that installation meets your specific needs.
Equipped with a dual-voltage induced-draft blower set for 240 volts yet easily rewired for 120 volts, the D-2 Power Vent offers versatility for different power requirements. Safety is paramount, with features like a draft proving switch that guarantees proper blower operation before the heater ignites, preventing gas buildup for enhanced safety.
Experience peace of mind knowing that the D-2 Power Vent not only meets rigorous safety standards but also elevates the performance of Raypak heaters. Its innovative design ensures optimal operation, making it an essential component for your heating system.
